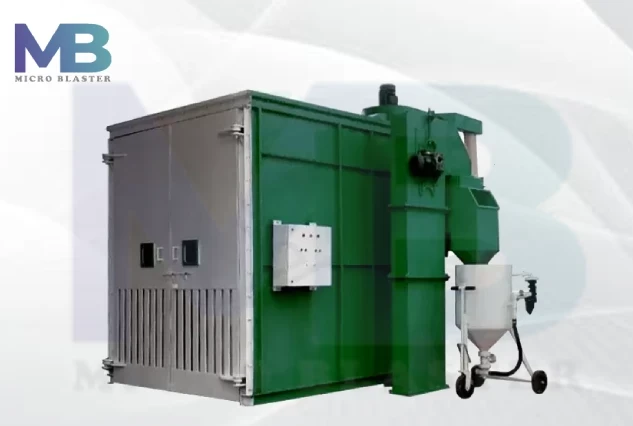

Sand blasting rooms are made so operators can sand blasting operations inside an enclosed space. Usually, high-volume pressure blasting happens inside these rooms. They need to be strong enough to handle blasting from the nozzles and the bouncing abrasive media. The walls, ceilings, and doors are usually made of thick steel and sealed to keep the steel grit abrasive and dust from escaping. Good lighting is crucial so operators can see their work clearly, and the lights are often mounted outside the room to avoid damage from the abrasive.
There are numerous alternatives for abrasive recovery & recycling systems inside sand blasting room. There are three primary recovery categories: floor hoppers, pneumatic, & mechanical. The choice is largely influenced by the kind of abrasive, production demands, & budget limitations.
Floor hoppers are small collection hoppers measuring approximately 3 feet by 3 feet (900x900 mm), recessed in a floor pit conveniently located on one side of the room. The bottom of the hopper is attached to a bucket elevator installed outside of the room. The bucket elevator unloads into an abrasive cleaner/storage assembly, whichever is ascended over a pressure blast machine. In the process, abrasive is cleaned & shoveled into a grated floor hopper, taken by elevator, mechanically screened & air washed by the abrasive cleaning unit & stored above the abrasive blasting machine for reuse. This economical kind of recovery system is perfect for structures where blasting handles establishment occasionally.
Pneumatic recovery systems are created to recover & clean sufficient, lightweight media. Applications utilizing glass beads, fine mesh aluminum oxide, plastic, & agricultural abrasives, like walnut shells, are more actually reclaimed by the pneumatic vacuum process. Pneumatic systems consist of a series of small 12 in. by 12 in. (300 X 300 mm) hoppers covering the entire room floor area. The bottom of the hoppers attaches to parallel conveying ducts, whichever is associated with a specialist duct conducting up to the inlet of the media reclaims. The reclaimer, mounted over the pressure blast machine, centrifugally cleans & screens media for reuse. Partisan floor-sized pneumatic systems are unrestricted where entire floor recovery isn't required.
Mechanical recovery systems function best accompanied by medium & heavy abrasives, particularly when steel grit & steel shots are utilized. Several design ideas are available on the need featuring wiper vanes, oscillating pans, & screw conveyors. All the systems are covered along steel gating to support weight loads. Each design has certain advantages depending on the abrasive and application.
Wiper vane approaches offer the most versatility on abrasives due to the conveying method. Steel vanes are powered by pneumatic drive cylinders in forward & backward strokes. A series of vanes push abrasive media on the forward stroke. On the back stroke, the vanes tilt up and ride over abrasive on the floor. Sequencing of the vanes pushes abrasive into a vane cross conveyor and onto a bucket elevator positioned at the end. Vanes can efficiently handle any type of angular abrasive that is not too fine. Wiper vane systems are only offered in the full floor size of the room.
Oscillating pans are supplied at various lengths in 3-, 4-, or 5-ft (900, 1,200, or 1,500 mm) wide sections. The steel pan in each section is hung by a link chain & is oscillated back & forth by eccentric cams. A central screw conveyor collects & produces abrasive from the pans to an exterior bucket elevator. Abrasive is cleaned & stored in an abrasive cleaner as described in the wiper vane system. A single small electric motor utilizes all the cams on an average-size floor. This system is scheduled to handle coarse, angular abrasive. It is available for partisan floor recovery areas at any combination of width sizes to accommodate economic limitations.
The screw conveyor system's primary advantages are abrasive recovery volume, speed, & distance. On long-length blast rooms [over 50 feet (13 meters)], a screw conveyor will move more amazing portions of abrasive quickly than by additional procedures. This system consists of rows of motor-driven screw augers mounted in steel troughs, covered accompanied by steel grating. Floor augers attach to a cross-collection auger, which takes abrasive to the inlet of a bucket elevator. A bucket elevator, abrasive cleaner, & sand blasting machine are the same equipment utilized accompanied by the different mechanical recovery systems previously described. The versatility of this system allows any number of screw conveyor chambers to be placed anywhere in the floor area.
Sand Blasting Room Working Principle
Sand blasting rooms are perfect for cleaning & removing rust from big job pieces, as well as improving adhesion between job pieces & coatings. Before the sand blasting operation, a job piece is established in the sand blasting room, electric & gas devices are attached, & sand blasting lighting is switched on. Workers wear protective clothes & handle spray guns to initiate sand blasting operations. Steel shot from manual sand blasting falls to the bottom of the sand blasting chamber, where it is assembled by a screw pusher & enchanted to the bottom of the elevator & then to the top of the sorter via elevator belt assemblage. Dust collector produces electricity for sorter. The goal is to remove fractured steel shot & dust from the sandblasting process. Suitable steel shot will be sent straight to a storage container exceeding the blasting equipment, where it will be prepared for reuse. Dust collector fan immediately withdraws dust, whichever is then absorbed in the filter dust collector before falling into the dust recovery box, which must be cleaned on a regular basis. Dust collector delivers electricity to the sorter. The goal is to extract fractured steel shot & dust from sand blasting operation. Suitable steel shot will be sent straight to the storage compartment exceeding the blasting equipment, where it will be ready for reuse. The dust collector fan immediately withdraws dust, whichever is then absorbed in the filter dust collector before falling into the dust recovery box, which must be cleaned on a regular basis.
Sand Blasting Room Components
A blast room has the following essential components: Blast Chamber: Contains abrasive media from running & infiltrating the surrounding atmosphere. Abrasive Blasting Machine System: Includes abrasive media & pressured air, along valves certain permit personnel to stop & restart the flow. Sand blasting booths are a widespread option. Abrasive Recovery System: Automatically collects remaining abrasive from blasting & sweeps or suctions into a dust collector. Dust Collector: The dust collector filters the air in the room to control particulate matter from leaking into the outside air. Recycling Station: Sorts excess abrasive to terminate sufficient dust from elevated quality, reusable abrasive.
Low Noise Blast Rooms
Where noise reduction is crucial. Micro Blaster provides a specifically developed variety of devices to satisfy these needs. Our acoustic chamber are made from combined panels loaded with a variety of materials & have a strong steel inner & exterior covering. Our acoustic enclosures have exceptional noise & heat insulation capabilities.
Our panel's modular architecture allows booths to be deployed in practically any size & arrangement. Our building & jointing approach greatly saves build time while guaranteeing certain booths meet the highest requirements.
Steel Panel Blast Rooms
Paneled booths are modular & functional in a variety of sizes. The booths are meant for interior use & are made of thick gauge steel plates along an exterior structural frame. The smooth inside surfaces provide simple cleaning & quick grit recovery. Sand Blasting booth's inside fronts are coated along hard-wearing shot blasting machine grade rubber, & blast room doors are double-skinned & placed on powerful container hinges, securing smooth & effective operation. For decades, blast chambers include been built using this conventional manner. Recent improvements in combined panels provide an option for picking the most sturdy, efficient, & cost-effective enclosure design.
Weatherproofed Containerised Blasting Rooms
When production space is restricted & a temporary location is needed, the containerized blastroom delivers an immediate & cost-effective alternative. Containerized booths may be built using regular shipment containers, whichever lowers design & construction expenses often involved in blast chamber manufacturing. We can also create weatherproofed container designs in considerably larger proportions to acclimate more extensive items, as well as a variety of larger telescopic containerized booths particularly constructed for the freight & automobile reconditioning industries.
This design's versatility allows you to select the kind of recovery system, dust collecting system, and unit size to assemble your exhaustive conditions. Our containerized booths are completely weatherproof & may be installed inside or outside your plant.
Sand Blasting Room Features
Not all blast chambers will include ceiling lighting, & for bigger, more comprehensive blast chambers, auxiliary side lighting will significantly increase room illumination.
More extensive blast rooms typically include more than one entrance door for operator exit, but more diminutive blast rooms could merely utilize primary blast room doors for entrance.
With complete floor abrasive media recovery blast rooms, industrial floor grids are often designated on top of the abrasive media recovery system, allowing the operator to stroll & push practically the whole blast chamber.
A manual sweet recovery blast room does not utilize a floor grid because a velvety blast room floor is required to allow abrasive cleaning & recovery for recycling & reuse.
Most blast chamber ventilation systems include a down-draft and cross-draft configuration that runs the length of the room. As a result, inlet air ventilation plenum louvers are typically found on the top, near the front, & at the entry point of sand blast room. These intake air louvers are often established on the blast chamber ceiling, & on the blast chamber doors.
The ventilation dust collector will then be routed to the other end of the room to supply down-draft/cross-draft laminar airflow demanded to deliver acceptable sight to the blast operator.
In the circumstance of Micro Blaster blast booths, the waffle pneumatic recovery system employs a two-and-one complete technique for blast chamber ventilation & media recovery. In this scenario. Instead of standing encountered at the blast room front & entrance, intake air louvers are widely distributed almost the top of the ceiling.
Sand Blasting Room Manufacturer
We are the leading sand blasting room manufacturer in India and also the supplier of sand blasting rooms all over the world. Our sand blasting room price is low compared to others. Micro Blaster also provides all kinds of sand blasting machines, portable type sand blasting machines, cabinet type sand blasting machines, sand blasting hopper, sand blasting machine spare parts, etc.
